1.7 billion years ago, Earth had a natural nuclear reactor

Planets can create nuclear power on their own, naturally, without any intelligence or technology. Earth already did: 1.7 billion years ago.
Sign up for the Freethink Weekly newsletter!
A collection of our favorite stories straight to your inbox

If you were hunting for alien intelligence, looking for a surefire signature from across the Universe of their activity, you’d have a few options. You could look for an intelligent radio broadcast, like the type humans began emitting in the 20th century. You could look for examples of planet-wide modifications, like human civilization displays when you view Earth at a high-enough resolution. You could look for artificial illumination at night, like our cities, towns, and fisheries display, visible from space.

Or, you might look for a technological achievement, such as the creation of particles like antineutrinos in a nuclear reactor. After all, that’s how we first detected neutrinos (or antineutrinos) on Earth. But if we took that last option, we might fool ourselves. Earth created a nuclear reactor, naturally, long before humans ever existed.

Reactor nuclear experimental RA-6 (Republica Argentina 6), en marcha, showing the characteristic Cherenkov radiation from the faster-than-light-in-water particles emitted. The neutrinos (or more accurately, antineutrinos) first hypothesized by Pauli in 1930 were detected from a similar nuclear reactor in 1956. (Credit: Centro Atomico Bariloche/Pieck Dario)

In order to create a nuclear reactor today, the first ingredient we need is reactor-grade fuel. Uranium, for example, comes in two different naturally-occurring isotopes: U-238 (with 146 neutrons) and U-235 (with 143 neutrons). Changing the number of neutrons doesn’t change your element type, but does change how stable your element is. For U-235 and U-238, they both decay via a radioactive chain reaction, but U-238 lives about six times as long, on average.

By the time you get to the present day, U-235 makes up only about 0.72% of all naturally-occurring Uranium, meaning it has to be enriched to at least about 3% levels in order to get a sustaining fission reaction, or a special setup (involving heavy water mediators) is required. But 1.7 billion years ago was more than two full half-lives ago for U-235. Back then, in ancient Earth, U-235 was about 3.7% of all uranium: enough for a reaction to occur.

This diagram shows the chain reaction that can ensue when an enriched sample of U-235 is bombarded with a free neutron. Once U-236 is formed, it quickly splits apart, releasing energy and producing three additional free neutrons. If this reaction runs away, we get a bomb; if this reaction can be controlled, we can build a nuclear reactor. (Credit: Fastfission/Wikimedia Commons)

In between different layers of sandstone, before you reach the granite bedrock making up most of Earth’s crust, you often find veins of mineral deposits, rich in a particular element. Sometimes these are extremely lucrative, like when we find gold veins underground. But sometimes, we find other, rarer materials in there, such as uranium. In modern reactors, enriched uranium produces neutrons, and in the presence of water, which acts like a neutron moderator, a fraction of those neutrons will strike another U-235 nucleus, causing a fission reaction.

As the nucleus splits apart, it produces lighter daughter nuclei, releases energy, and also produces three additional neutrons. If the conditions are right, the reaction will trigger additional fission events, leading to a self-sustaining reactor.

Geologic cross-section of the Oklo and Okélobondo uranium deposits, showing the locations of the nuclear reactors. The last reactor (#17) is located at Bangombé, ~30 km southeast of Oklo. The nuclear reactors are found in the FA sandstone layer. (Credit: D.J. Mossman et al., Deep Geologic Repositories, 2008)

Two factors came together, 1.7 billion years ago, to create a natural nuclear reactor. The first is that, above the bedrock layer of granite, groundwater flows freely, and it’s only a matter of geology and time before water flows into the uranium-rich regions. Surround your uranium atoms with water molecules, and that’s a solid start.

But to get your reactor working well, in a self-sustaining fashion, you need an extra component: you want the uranium atoms to be dissolved in the water. In order for uranium to be soluble in water, oxygen must be present. Fortunately, aerobic, oxygen-using bacteria evolved in the aftermath of the first mass extinction in Earth’s recorded history: the great oxygenation event. With oxygen in the groundwater, dissolved uranium would be possible whenever water floods the mineral veins, and could have even created particularly uranium-rich material.

A selection of some of the original samples from Oklo, discovered in 1972. This is a piece of high-grade ore from the Oklo mines mysterious contained 0.4% less U-235 than all other naturally occurring samples relative to U-238, evidence that some sort of previous fission reaction had depleted the U-235. (Credit: Ludovic Ferrière/Natural History Museum of Vienna)

When you have a uranium fission reaction, a number of important signatures wind up being produced.

  1. Five isotopes of the element xenon are produced as reaction products.
  2. The remaining U-235/U-238 ratio should be reduced, since only U-235 is fissile.
  3. U-235, when split apart, produces large amounts of neodymium (Nd) with a specific weight: Nd-143. Normally, the ratio of Nd-143 to the other isotopes is about 11–12%; seeing an enhancement indicates uranium fission.
  4. Same deal for ruthenium with a weight of 99 (Ru-99). Naturally occurring with about 12.7% abundance, fission can increase that to about 27–30%.

In 1972, the French physicist Francis Perrin discovered a total of 17 sites spread across three ore deposits at the Oklo mines in Gabon, West Africa, that contained all four of these signatures.

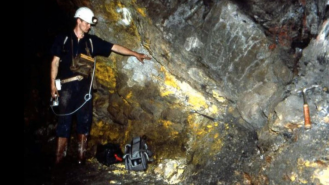

This is the site of the Oklo natural nuclear reactors in Gabon, West Africa. Deep inside the Earth, in yet unexplored regions, we might yet find other examples of natural nuclear reactors, not to mention what might be found on other worlds. (Credit: U.S. Department of Energy/Sandia National Laboratories)

The Oklo fission reactors are the only known examples of a natural nuclear reactor here on Earth, but the mechanism by which they occurred lead us to believe that these could occur in many locations, and could occur elsewhere in the Universe as well. When groundwater inundates a uranium-rich mineral deposit, the fission reactions, of U-235 splitting apart, can occur.

The groundwater acts as a neutron moderator, allowing (on average) more than 1 out of 3 neutrons to collide wtih a U-235 nucleus, continuing the chain reaction.

As the reaction goes on for only a short amount of time, the groundwater that moderates the neutrons boils away, which stops the reaction altogether. Over time, however, without fission occurring, the reactor naturally cools down, allowing groundwater back in.

The terrain surrounding the natural nuclear reactors in Oklo suggests that groundwater insertion, above a layer of bedrock, may be a necessary ingredient for rich uranium ore capable of spontaneous fission. (Credit: Curtin University/Australia)

By examining the concentrations of xenon isotopes that become trapped in the mineral formations surrounding the uranium ore deposits, humanity, like an outstanding detective, has been able to calculate the specific timeline of the reactor. For approximately 30 minutes, the reactor would go critical, with fission proceeding until the water boils away. Over the next ~150 minutes, there would be a cooldown period, after which water would flood the mineral ore again and fission would restart.

This three hour cycle would repeat itself for hundreds of thousands of years, until the ever-decreasing amount of U-235 reached a low-enough level, below that ~3% amount, that a chain reaction could no longer be sustained. At that point, all that both U-235 and U-238 could do is radioactively decay.

There are many natural neutrino signatures produced by stars and other processes in the Universe. For a time, it was thought there would be a unique and unambiguous signal that comes from reactor antineutrinos. Now we know, however, that these neutrinos may also be naturally produced. (Credit: IceCube Collaboration/NSF/University of Wisconsin)

Looking at the Oklo sites today, we find natural U-235 abundances that are depleted from their normal ratios by 0.44%-to-0.60%. Although the natural abundance normally found is incredibly low, at 0.720% U-235, compared to 99.28% U-238 (looking at the uranium alone), the Oklo samples only display U-235 abundances that range from 0.7157% up to 0.7168%: all well-below the normal value of 0.72%.

Nuclear fission, in some form or another, is the only naturally-occurring explanation for this discrepancy. Combined with the xenon, the neodymium, and the ruthenium evidence, the conclusion that this was a geologically-created nuclear reactor is all but inescapable.

Ludovic Ferrière, curator of the rock collection, holds a piece of the Oklo reactor in Vienna’s Natural History Museum. A sample of enriched ore from the Oklo reactor is now on permanent display in the Vienna museum as of 2019. (Credit: L. Gil/IAEA)

Interestingly enough, there are a number of scientific findings we can conclude from looking at the nuclear reactions that occurred here.

  • We can determine the timescales of the on/off cycles by looking at the various xenon deposits.
  • The sizes of the uranium veins and the amount that they’ve migrated (along with the other materials affected by the reactor) over the past 1.7 billion years can give us a useful, natural analogue for how to store and dispose of nuclear waste.
  • The isotope ratios found at the Oklo sites allow us to test the rate of various nuclear reactions, and determine if they (or the fundamental constants driving them) have changed over time.

Based on this evidence, we can determine that the rates of nuclear reactions, and therefore the values of the constants that determine them, were the same 1.7 billion years ago as they are today.

And finally, and perhaps most importantly for understanding our planet’s natural history, we can use the ratios of the various elements to determine both Earth’s age as well as its composition at the moment of its creation. The lead-isotope and uranium-isotope levels teach us that 5.4 tonnes of fission products were produced, over a ~2 million year timespan some 1.7 billion years ago, in an Earth that’s 4.5 billion years old today.

This image from NASA’s Chandra X-ray Observatory shows the location of different elements in the Cassiopeia A supernova remnant including silicon (red), sulfur (yellow), calcium (green) and iron (purple), as well as the overlay of all such elements (top). A supernova remnant expels heavy elements created in the explosion back into the Universe. Although it isn’t shown here, the ratio of U-235 to U-238 in supernovae is approximately 1.6:1, indicating that Earth was born from largely ancient, not recently, created raw uranium. (Credit: NASA/CXC/SAO)

When a supernova goes off, as well as when neutron stars merge, both U-235 and U-238 are produced. From examining supernovae, we know we actually create more U-235 than U-238 in about a 60/40 ratio. If Earth’s uranium were all created from a single supernova, that supernova would have occurred 6 billion years before the formation of Earth.

On any world, as long as a rich vein of near-surface uranium ore exists with greater than 3/97 ratio of U-235 to U-238, mediated by water, a spontaneous and natural nuclear reaction can occur. These conditions could arise at any time, and as long as few enough half-lives have passed relative to the decay time of U-235, the discovery of “reactor antineutrinos” from another world might indicate a natural nuclear reaction just as easily as it could indicate the presence of an intelligent, technologically advanced civilization creating their own nuclear reactions.

In one serendipitous location on Earth, in more than a dozen instances, we have overwhelming evidence for a history of nuclear fission. In the game of natural energy, don’t ever leave nuclear fission off the list again.

This article was reprinted with permission of Big Think, where it was originally published.
