James Webb’s record-breaking first science image: explained

With its very first deep-field view of the universe now released, the James Webb Space Telescope has shown us our cosmos as never before.

On July 11, 2022, history was made as the very first science image of the James Webb Space Telescope (JWST) was unveiled to the world. Upon its release, it immediately broke the cosmic record for the deepest view ever taken of the Universe: a remarkable feat. This record had previously been held by the Hubble Space Telescope, which first set the record back in 1994 with the original Hubble Deep Field, and which broke its own record numerous times.

Prior to JWST’s first science release, the deepest view of our cosmos came from the Hubble eXtreme Deep Field: a region of space so small it takes up just 1/32,000,000th of the sky. Within it, 5500 galaxies were found, spanning almost the entire history of the Universe: from just 400 million years after the Big Bang until today, or from when the Universe was merely 3% of its current age all the way to its present state.

That image, below, represented the deepest view of the Universe for a full decade. But by simply using its suite of instruments to observe a run-of-the-mill galaxy cluster, SMACS 0723, the JWST has shown us the Universe as we’ve never seen it before. Here’s the science behind the image, along with precisely what gives us such an unprecedented view.

webb first science
Over the course of 50 days, with a total of over 2 million seconds of total observing time (the equivalent of 23 complete days), the Hubble eXtreme Deep Field (XDF) was constructed from a portion of the prior Hubble Ultra Deep Field image. Combining light from ultraviolet through visible light and out to Hubble’s near-infrared limit, the XDF represents humanity’s deepest view of the cosmos: a record that stood until the JWST’s first deep field was released on July 11, 2022. Credit: NASA, ESA, G. Illingworth, D. Magee, and P. Oesch (University of California, Santa Cruz), R. Bouwens (Leiden University), and the HUDF09 Team)

There are a few keys to taking a “deep” view of the Universe. The first is to find an area of the sky that’s relatively pristine:

  • with no bright stars from within the Milky Way in its field of view,
  • with no bright, extended, extremely nearby galaxies in the vicinity,
  • where there’s only a small, negligible amount of neutral, light-blocking matter due to the Milky Way’s foreground,
  • and where even the brightest stars and galaxies remaining are faint enough so that they won’t be able to saturate the detectors and instruments under any settings.

Then, in as many relevant filters (which probe a very specific wavelength range) as possible, you take a series of images where you simply gather light, one photon at a time, from the same region of sky. Images that use the same filter — i.e., which view the region of the sky in the exact same wavelength range — then get “stacked” together: where the light from each individual frame gets added together, exposing the faintest objects perceptible in that wavelength range.

And, at last, multiple different filters are combined to produce images. We assign colors to each filter or set of filters, and then our eyes interpret the data the same way we’d interpret a full-color photograph.

webb first science
This photograph, from 1911, demonstrates the technique of additive color mixing as applied to photography. Three color filters, blue, yellow, and red, were applied to the subject, producing the three photographs at right. When the data from the three are added together in the proper proportions, a color image is produced. Credit: Sergei Mikhailovich Prokudin-Gorskii

For the Hubble Space Telescope, it was primarily designed as an optical observatory: optimized to look at the same wavelengths of light that human eyes are sensitive to. Because it’s located in space, far above Earth’s atmosphere, it doesn’t have the same limitations that a ground-based telescope possesses: it can look at wavelengths that are otherwise blocked by Earth’s atmosphere. That means that it can see ultraviolet (shorter-wavelength) light as well, where the atmosphere is only partially transparent to it, and it can also see into the infrared (longer-wavelength) portion of the spectrum, where only a selection of wavelength ranges aren’t completely blocked by our atmosphere.

Each different wavelength range will have its own unique resolution when it comes to the light that’s gathered. In general, the resolution you have is determined by the number of wavelengths of light (in that particular wavelength range) that fit across the diameter of your telescope’s primary mirror. Although human vision extends from 400 to 700 nanometers, telescopes can assign filters to cover whatever wavelength range the operators desire.

For Hubble, with its 2.4-meter diameter mirror, that means its “blue” filter (of about 400 nanometers) has about twice as good a resolution as its “red” filter (of about 800 nanometers), and its infrared filters (which span from 1050 nanometers to 1600 nanometers) are again only half-as-sharp at the longest wavelengths.

webb first science
This three-panel animation shows what galaxy cluster SMACS 0723 looks like to Hubble’s visible light filters (R, G, and B), infrared filters (four wavelength ranges from 1 to 1.6 microns), and with all seven filters stacked together (composite). The resolution for each progressively longer-wavelength filter decreases. Credit: NASA/ESA/Hubble (STScI)

Above, you can see what a few different views of galaxy cluster SMACS 0723 — the target of JWST’s first science observations — looked like to Hubble’s eyes. Although you can’t quite tell, there are actually seven different sets of filters used as part of the final image composite. For Hubble:

  • there are three optical filters, at 435, 606, and 814 nanometers, assigned to red, green and blue, respectively,
  • there are four infrared filters, at 1050, 1250, 1400, and 1600 nanometers, all assigned-and-stacked to the same infrared channel,
  • and the overall composite combined all seven filters, assigning “blue” to the 435 nm channel, “green” to the 606 + 814 nanometer channel, and “red” to all four infrared channels combined.

By looking at details in these channels separately, you can notice a slew of features. Cooler stars and diffuse starlight are brighter in the infrared. Features of a galaxy’s disk are sharpest in the shortest wavelengths, and become more smeared-out at longer and longer wavelengths. This is expected, but it’s also profound to see it in action. A filter at 1600 nanometers isn’t only one-fourth as good as a filter at 400 nanometers; it’s actually only one-sixteenth as good. A galaxy that takes up 64 pixels (8-by-8) in Hubble’s blue filter would only take up 4 pixels (2-by-2) in Hubble’s farthest infrared filter.

webb first science
This view of the core of galaxy cluster SMACS 0723 shows how resolution varies from shorter-wavelength to longer-wavelength channels. The difference in resolution, particularly once you look at the infrared channel on its own, is quite dramatic. Credit: NASA/ESA/Hubble (STScI)

There are two factors at play that limit, at a fundamental level, what Hubble can see; these two factors are literally the difference-maker between Hubble and its successor: JWST.

1.) Hubble is warm; JWST is cold. If you want to detect anything and this goes for anything, ever, under any circumstances you need to be able to see a signal from what you’re measuring over and above the noise inherent to your instrument. Infrared radiation is simply a consequence of heat: objects at a certain temperature radiate heat, and that heat shows up as photons of a particular wavelength. The hotter you are, the more photons you’ll emit at higher and higher energies (and shorter and shorter wavelengths).

In low-Earth orbit, Hubble, even wrapped in its highly reflective coating, still hovers somewhere around 200 K and up. This is what limits its wavelength capabilities: beyond ~2000 nanometers (2 microns) or so, the observatory produces too much of its own internal radiation to do useful science. JWST is, thanks to its 5-layer sunshield, passively cooled down to below 40 K for all of its instruments, including NIRCam, the Near-Infrared camera, which can see all the way out to ~5000 nanometers (5 microns) without any active cooling. And then MIRI, the Mid-Infrared instrument, is actively cooled down to 6 K, enabling it to see light between 5000 and 28000 nanometers (5-28 microns) at its ultimate limits.

webb first science

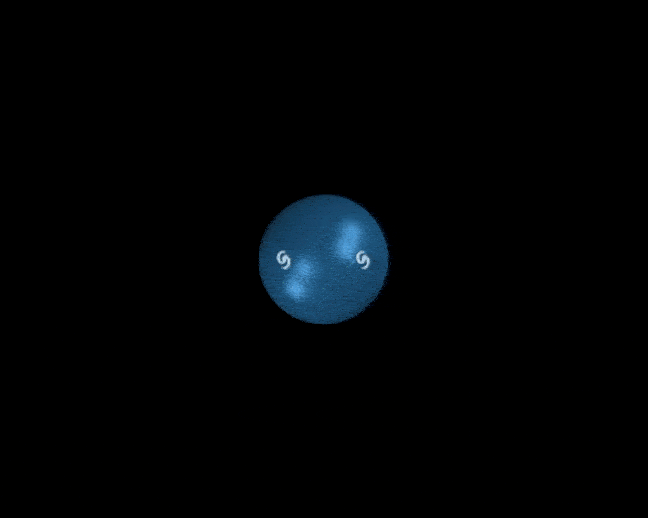

This simplified animation shows how light redshifts and how distances between unbound objects change over time in the expanding Universe. Only by linking the wavelength of the emitted light to the observed light can the redshift truly be measured with confidence. Credit: Rob Knop

This is really, really important for scientific discovery, as you can’t see the most distant objects by looking in the same wavelengths as the ones where that light was initially emitted. The Universe isn’t static, but is expanding instead: distant, gravitationally unbound galaxies all recede from one another against the backdrop of expanding space. When a distant object emits light — even, initially, very blue light — the expansion of the Universe stretches that light to longer and longer wavelengths.

Hubble, even at the longest-wavelengths that it’s sensitive to, can’t really take us back to galaxies that emit light from the first ~3% of the Universe’s history. But thanks to its NIRCam and MIRI capabilities, JWST can see much longer wavelengths, enabling it to reveal objects that are undetectable by warmer observatories.

In fact, you can see this by remembering that Hubble runs into its limits only slightly beyond 1.6 microns as shown by the grey bar in the image below. But JWST can see light that’s ~3 times longer with its NIRCam instrument alone, including with numerous filters that would be useless aboard Hubble.

webb first science

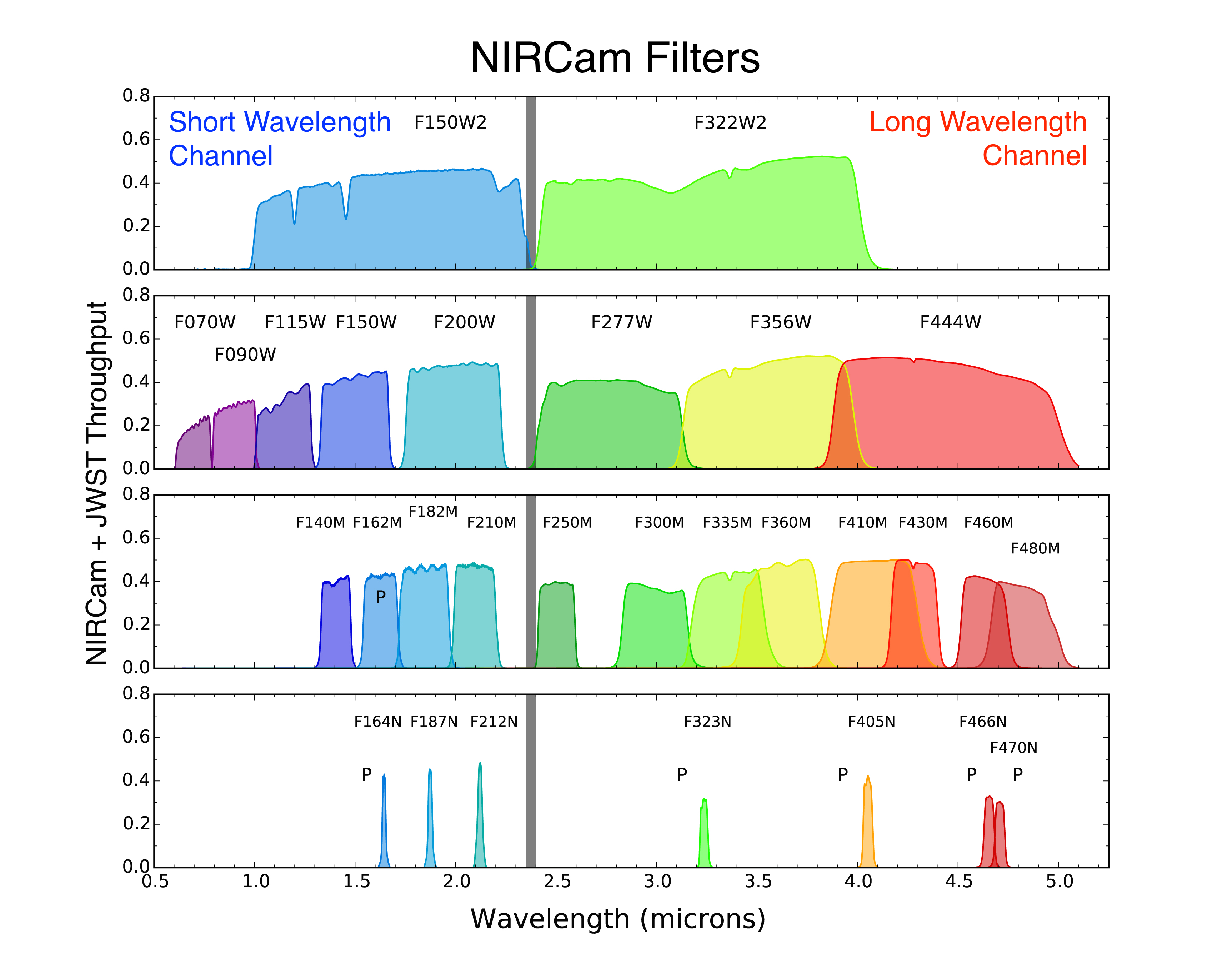

Preliminary total system throughput for each NIRCam filter, including contributions from the JWST Optical Telescope Element (OTE), NIRCam optical train, dichroics, filters, and detector quantum efficiency (QE). Throughput refers to photon-to-electron conversion efficiency. Credit: NASA/JWST NIRCam instrument team

There are objects out there so distant that their light takes 13.4 billion years or more to reach us, and that takes us beyond the limitations of Hubble. But that’s where the cosmic frontier is: beyond the limits of what we’ve already seen with pre-existing technology. If we want to see the earliest galaxies, the first stars, and the youngest objects ever to form in the Universe, we simply have to go beyond the capabilities of current technology. That means longer wavelengths and cooler observatories, and that’s precisely what JWST is delivering.

But it gets even better than NIRCam. By using the MIRI instrument, which is the only actively-cooled instrument on board the JWST, we can go out to a whopping ~14 times the maximum wavelength that the Hubble Space Telescope is sensitive to.

Because of Hubble’s wavelength limitations, many of the galaxies that are currently classified as the most distant — including the dubious record-holder, HD1 — actually lack the spectroscopic confirmation needed, because the spectral lines that we’d look for are beyond the capabilities of even the finest of Hubble’s instruments. With JWST’s exquisite and comprehensive wavelength coverage, however, that problem will disappear.

webb first science

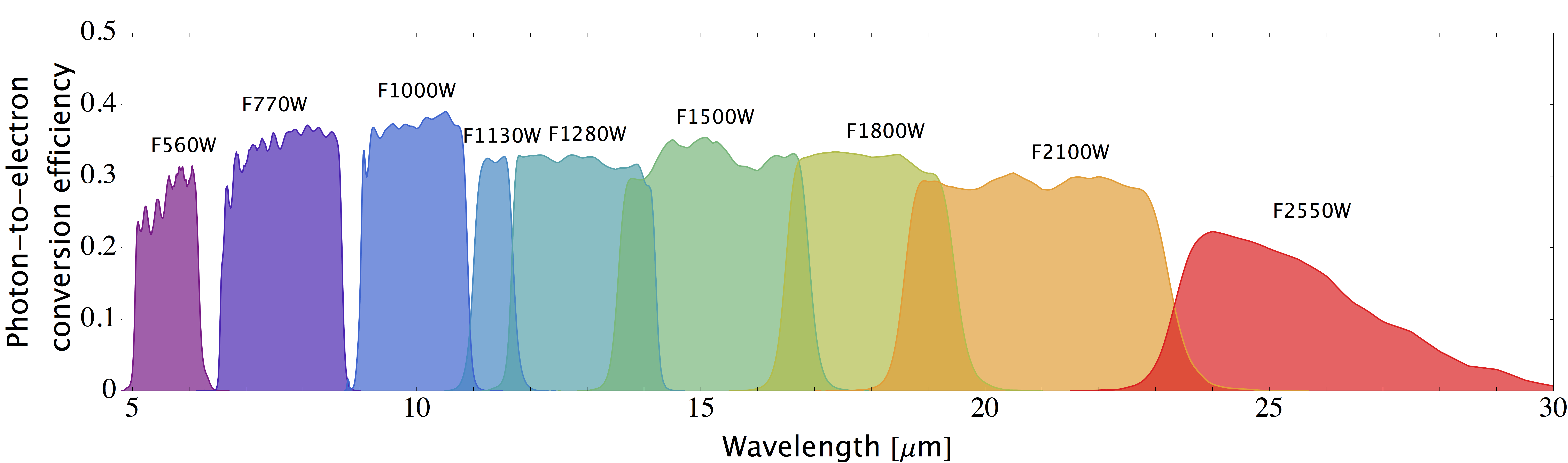

The MIRI imager filter wheel includes: 10 filters for imaging, a 4 filter-diaphragm, combinations for coronagraphy, one neutral density filter, one ZnS-Ge double prism for the LRS mode, one opaque position for darks, and one lens for ground testing purposes. These sets of filters enable us to view the mid-infrared portion of the spectrum as never before. Credit: NASA/JWST MIRI instrument team

So that’s why an increased wavelength range is so important if we want to overcome Hubble’s limitations, which JWST does. But there’s another way that JWST surpasses Hubble as well that’s just as important.

2.) Telescope size determines both resolution and light-gathering power. If you want to see farther into the distant Universe, and to see features you couldn’t see before, you have to increase the total amount of light you capture, and also observe the Universe at superior resolutions. With JWST, the NIRCam images, especially at the lowest wavelengths, will produce sharper images than Hubble ever could, owing to its large, 6.5-meter primary mirror that’s 270% the diameter of Hubble’s.

But at all wavelengths, JWST gathers more than 7 times the total amount of light as Hubble, meaning that it can not only expose fainter, more distant objects than Hubble ever could, but that it can do it with less observing time than Hubble would ever require. What Hubble requires a week for, JWST can do better in a day. What Hubble requires two months for, JWST can outperform in a week.

The whole entire reason that JWST can see what Hubble cannot is because of the difference in size, temperature, wavelength coverage, and the correspondingly-optimized instrument suite.

webb first science

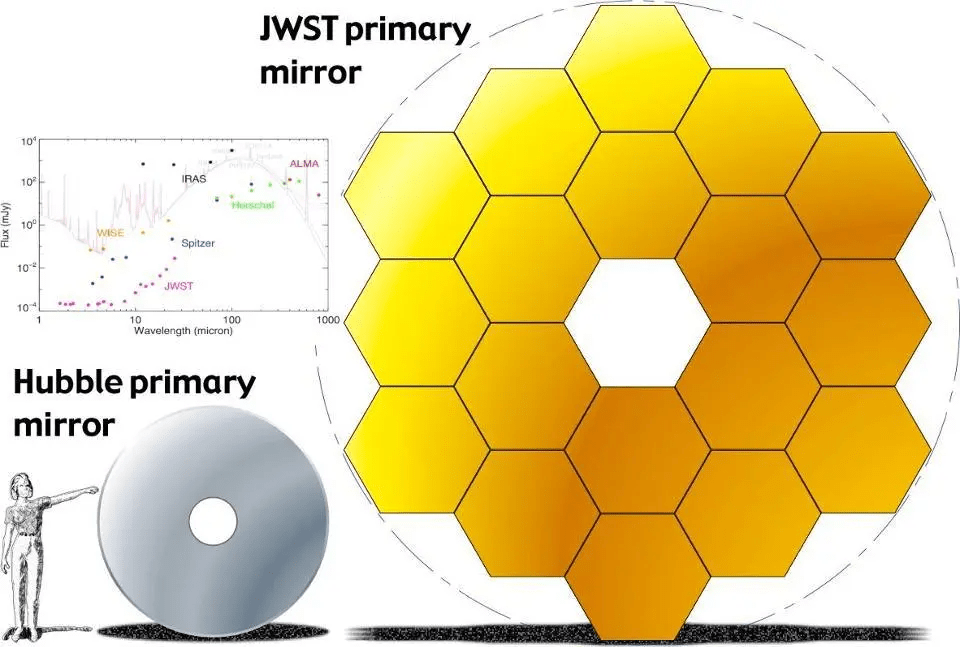

James Webb will have seven times the light-gathering power of Hubble, but will be able to see much farther into the infrared portion of the spectrum, revealing those galaxies existing even earlier than what Hubble could ever see. Galaxy populations seen prior to the epoch of reionization should abundantly be discovered, including at low masses and low luminosities, by James Webb beginning in July of 2022. Credit: NASA/JWST Science Team; composite by E. Siegel

So, with all of that out of the way, let’s take a detailed look at the very first deep-field image from the JWST!

It is, as expected, of the galaxy cluster SMACS 0723, although it’s also about so much more than that. This massive galaxy cluster contains thousands of Milky Way-analog (or more massive) galaxies, and represents a tremendous concentration of mass in the Universe. The presence of this mass is enough to actually bend and distort the fabric of spacetime, causing light from behind the cluster to become:

  • bent,
  • distorted,
  • often split into multiple images,
  • and, perhaps most importantly, magnified.

The power of gravitational lensing, and strong gravitational lensing explicitly, reveals background sources that could never be practically seen otherwise. But this natural magnifying glass amplifies the light we receive, even at such long wavelengths, that JWST is able to reveal a number of objects never seen before because they were either too faint, too distant (and hence, their wavelength was stretched to too great a value to be seen previously), or a combination of the two.

webb first science
This composite blinker image was constructed by rotating our first view from the White House release of JWST’s first science image and pasting it atop the previous Hubble image. The number of new features revealed are spectacular. Credit: NASA, ESA, CSA, and STScI; NASA/ESA/Hubble (STScI); composite by E. Siegel

But take a look at what we’re seeing! Compared even to the full composite Hubble image of the exact same region, JWST is seeing both objects that have never been exposed before and also details within previously discovered objects that were completely obscure before it. Contained within this first JWST Deep Field are:

  • a number of faint “blobs” that aren’t seen in the Hubble image, corresponding to galaxies that were too faint and/or too long in wavelength to be seen previously,
  • a number of objects that appeared only as faint smudges, previously, that now have obvious structure to them, such as spiral arms, resulting from JWST’s improved resolution, light-gathering power, and superior wavelength coverage,
  • a brighter, wider glow from the central region: an example of what’s almost certainly intracluster light, inherent to most galaxy clusters that aren’t largely gas-depleted,
  • and numerous instances of “smudges” that were seen previously that are now seen to be multiple galaxies that appear to overlap: a tremendous demonstration of JWST’s superior resolution.

Although the official image release doesn’t include scientific data, a number of these objects are claimed to have their light come to us from as far back as 13.5 billion years ago: pushing our earliest cosmic views back by approximately 100 million years. A closer view, even without knowing any further specifics, reveals objects in the JWST image that simply were unseeable with Hubble’s technology.

webb first science
This almost-perfectly-aligned image composite shows the first JWST deep field’s view of the core of cluster SMACS 0723 and contrasts it with the older Hubble view. Looking at the image details that are absent from the Hubble data but present in the JWST data shows us just how much discovery potential is awaiting JWST scientists. Credit: NASA, ESA, CSA, and STScI; NASA/ESA/Hubble (STScI); composite by E. Siegel

With all of that said, it’s important to remember the following: this is only the beginning for JWST. This image, along with all of the record-breaking data contained within it including the unprecedented views of ultra-distant galaxies, never-before-seen quasars, and the stellar populations inside each of them is just the first deep-field view of the Universe that JWST has delivered. It’s not going to be the deepest; it’s not going to be the longest; it’s not going to be the widest-field or largest-area of JWST’s views. It’s just the first science result using this new observatory in this particular manner.

Over the coming years and decades, an enormous number of cosmic records are going to be broken, most of them over and over again. A decade from now, we’ll likely have dozens of galaxies fainter, more distant, and with more pristine stellar populations that go beyond any of the cosmic record-holders lurking in the lensed field of this galaxy cluster. A new generation of astronomy is officially underway. Although the best is yet to come, each new observation, especially at this early stage, exposes a new portion of our shared cosmic story for the very first time. The Universe, to everyone studying it, will never be the same again.

This article was originally published on our sister site, Big Think. Read the original article here.
